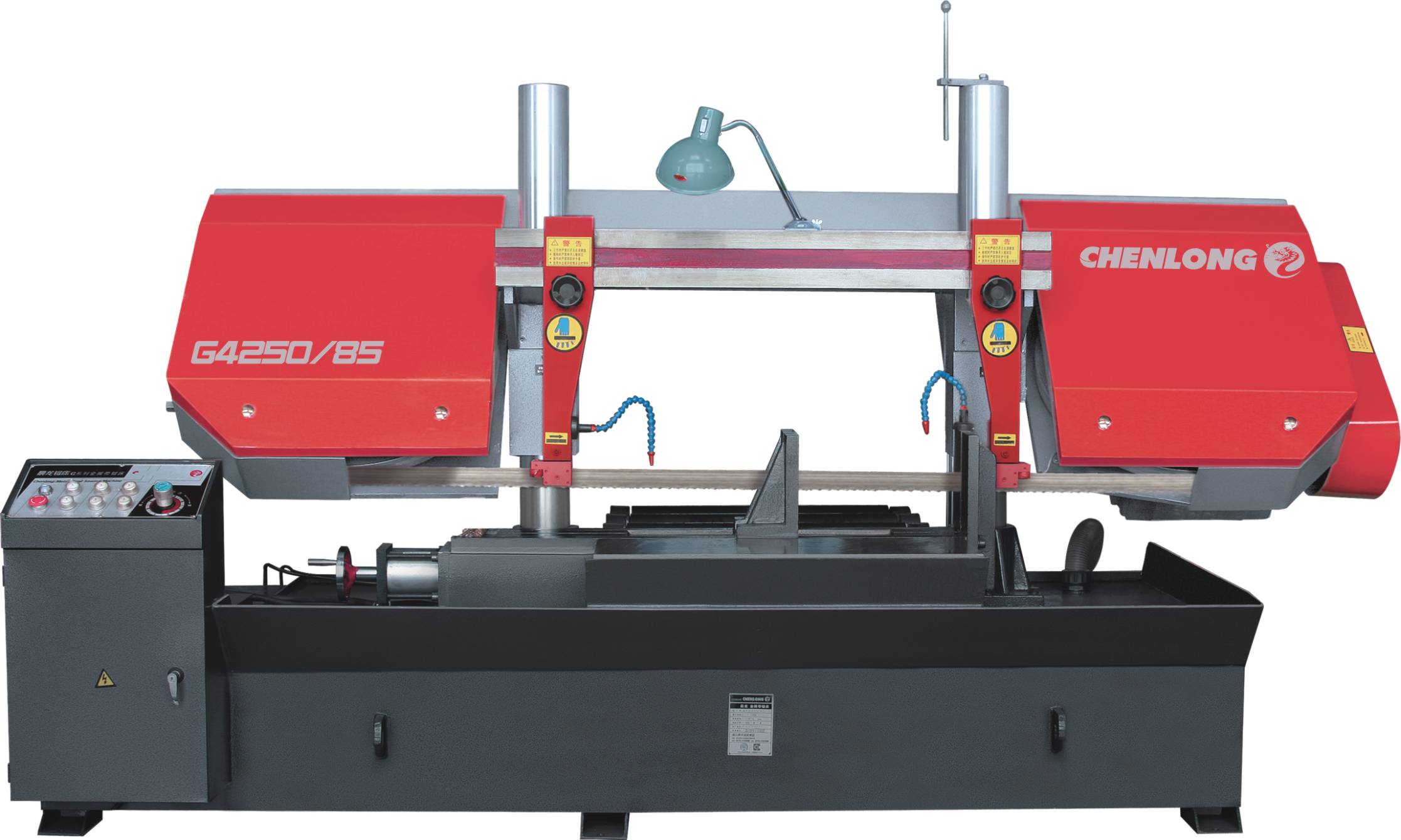

G4250/85 Mold Steel Cutting Horizontal Band Saw Machine

Product Categories

Zhejiang Chenlong Sawing Machine Co., Ltd.

Contact Now

Name: G425085 Mold Steel Cutting Horizontal Band Saw Machine
Brand: CHENLONG
Price: 1 USD

Brand Name : CHENLONG

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : Negotiable

Supply Ability : 300 Set/Sets per Month as per your requirement

Delivery Time : 40workdays

Packaging Details : plywood case..

Blade Size : 54x1.6x6830 mm

Warranty : 12 months

Color : customized

Main drive : Wormwheel drive

Clamping : Hydraulic

Machine size : 3500x18602060mm

Contact Now

Mold Steel Cutting Horizontal Bandsaw Machine For Metal Working G4250/85

Feature:

1. One piece of bi-metal saw blade

2. One set of tools with tool box

3. Saw frame height selector gauge

4. Out feed with auxiliary plate table

Product parameters
Model Name	New	CH-500
	Original	G4250/85
Max.cutting	Round	500mm
capacity	Quadrate	850W×500Hmm
Saw blade	Speed	19/28/40/52/62/74/84m/min
	Size	54×1.6×6830mm
	Guides	Carbide and bearing blade guides
	Cleaning	Wire brush & flood coolant
	Tension	Manual
Motor output	Blade	5.5kw
	Hydraulic	1.5kw
	Coolant	0.06kw
Work feeding		Manual
Work Vice		Hydraulic
Machine Weight		2000kg
Machine Size(L×W×H)		3500x1860x2060
Standard Equipment:
1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. Out feed with auxiliary plate table
5. One piece of bi-metal saw blade.
6. One set of tools with tool box
7. Roller table 1M long

G4250/85 Mold Steel Cutting Horizontal Band Saw Machine
