CH-560HA Hydraulic Shuttle Horizontal Band Saw Machine

Name: CH560HA Hydraulic Shuttle Horizontal Band Saw Machine
Brand: CHENLONG
Price: 1 USD

Quality CH-560HA Hydraulic Shuttle Horizontal Band Saw Machine wholesale

Place of Origin : Zhejiang, China

Brand Name : CHENLONG

Certification : CE/SGS/ISO9001

Supply Ability : 500 Set/Sets per Month as per yr requirement

Packaging Details : Plywood case Packing size:3013*2215*2120

MOQ : 1 Set/Sets

Price : Negotiable

Delivery Time : 40workdays

Power (kW) : 5.5

Weight (KG) : 3350

Key Selling Points : Energy saving

Warranty : 1 YEAR

After-sales Service Provided : Free spare parts, Online support, Free spare parts,online support

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Metal Processing Factory

Contact Now

CHENLONG Horizontal Band Saw Machine NC Control With Hydraulic Shuttle CH-560HA

Features:

1. Inverter control the saw blade line speed

2. Power blade cleaning brush

3. Automatic feeding

4. NC control

Product parameters
Model Name	New	CH-560HA (Double Column Fully Auto)
	Original
Max.cutting	Round	560mm	Bundle	N/A
capacity	Quadrate	560×560mm	cutting
Saw blade	Speed	20 to 80m/min
	Size	41×1.3×6200mm
	Guides	Carbide and bearing blade guides
	Cleaning	Power wire brush & flood coolant
	Tension	Hydraulic
Motor output	Blade	5.5kw
	Hydraulic	0.75kw
	Coolant	0.06kw
Multiple feed		400mm × 9 times
Work Vise		Hydraulic
Machine Weight		3350kgs
Machine Size(L×W×H)		3400×2200×2000mm
Standard Equipment:
1. Power blade cleaning brush.
2. Working light.
3. Fast approaching bar.
4. One piece of bi-metal saw blade.
5. One set of tools with tool box
6. NC control
7. Automatic chip conveyor
8. INVERTER
9. Roller table 2m long

CH-560HA Hydraulic Shuttle Horizontal Band Saw Machine

Product Tags:

nc control horizontal metal bandsaw

cnc horizontal band saw

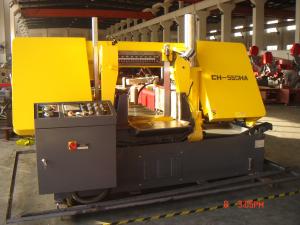

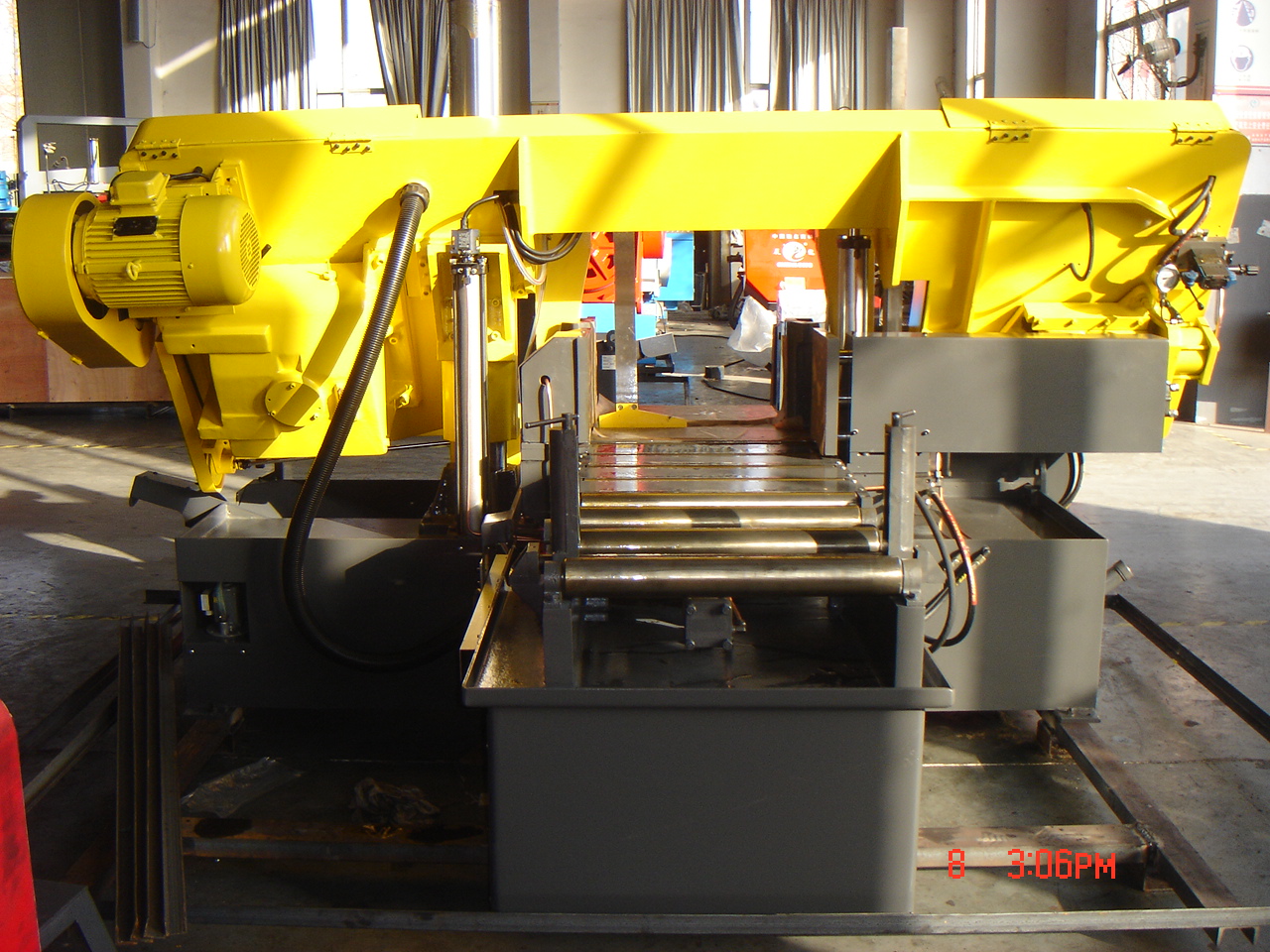

CH-560HA Hydraulic Shuttle Horizontal Band Saw Machine Images
